156
JACKS AND PLUGS
3.5MM HEAVY DUTY STEREO PLUG PHONE: 773 792-2700
* Please visit the product pages on our website for the most up-to-date product information

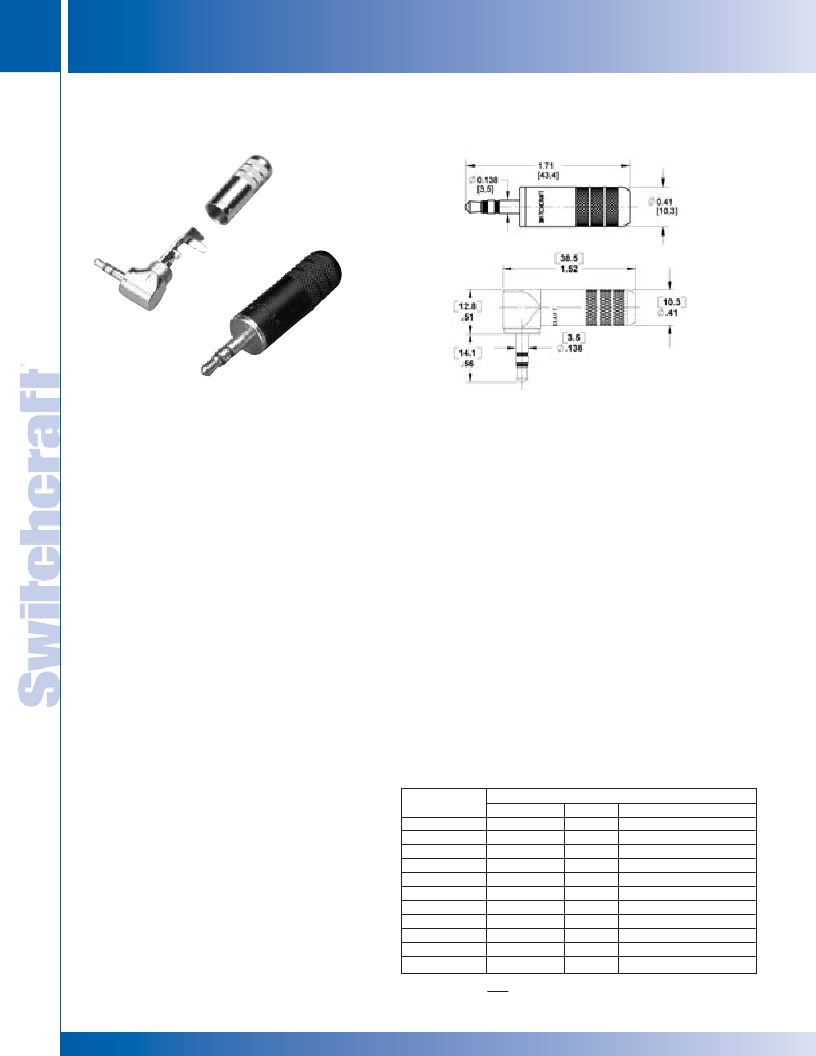

3.5 MM HEAVY DUTY STEREO PLUGS
RIGHT ANGLE
35HDBAU
3.5MM STEREO PLUGS
FEATURES
? Heavy duty 3.5mm plugs for audio, instrument,
other applications.
? Large cable clamps for rugged use.
? Available in straight or right angle.
? One piece tip rods for added durability.
? Available in nickel, gold, and black finishes.
? Large solder terminals for easy assembly.
? Standard handle accommodates cable sizes up to 0.290"
Optional ‘S’ versions accommodate cable sizes up to 0.175"
35HDBN - Black Handle, Nickel Plug
35HDBAU - Black Handle, Gold Plug
35HDNAU - Nickel Handle, Gold Plug
35HDNN - Nickel Handle, Nickel Plug
BENEFITS
SPECIFICATIONS
Contact Resistance: <0.020 ohms
Dielectric Withstand Voltage: - 250 VAC (min.)
Insulation Resistance @ 500 VDC: 2,000 megohms (min.)
Working Voltage: - 250 VAC, 140 VDC
Current Carry @ Working Voltage: 4 AMPS
Insert/Withdrawal Force: - Typical 2.5/2 pounds
Temperature Range: 0° to 66° Centigrade (operating)
Passed MIL-STD-202F Method 107G (Thermal Shock), and
Method 201 (Vibration)
Life: - 5000 cycles
Maximum Cable Size: - .250? dia.
MATERIALS
Tip Rod: Copper alloy, tin, or gold-plated
Ring: Copper alloy, nickel, or gold-plated
Sleeve: - Copper alloy, nickel, or gold-plated
?
?
?
?
One piece tip rod with flat for easy solderability.
Compliments current line of 3.5 mm jacks.
Insert molded plug finger.
Heavy Duty cable clamp provides better strain relief
Handle: Copper alloy, nickel, or gold-plated
Cable Clamp: - C.R.S., tin-plated
Solder Terminal: Copper alloy, tin-plated
Tubular Insulator: Clear plastic
for larger cables
? Longer cable clamp for easier plug assembly and more
room for solder connections
? Knurl on the back of handle provides ergonomic gripping
surface to tighten plug
ORDERING INFORMATION
1. Order by part number
2. Contact Switchcraft for more information
? Tubular insulator included to prevent solder joints
from contacting handle
? Longer handle for improved gripping surface
and easy plug withdrawal from jack
? Large solder terminal for easy solderability
MARKETS
? Audio
? Consumer electronic equipment
? Broadcast studios
? Home recording equipment
? Audio cable assembly manufacturers
? Instrumentation
? Test equipment
Part
Number
35HDNN
35HDNNS
35HDBN
35HDBNS
35HDNAU
35HDNAUS
35HDBAU
35HDBAUS
35HDRANN
35HDRABAU
35HDRAAU
Description
Plug Finger
Nickel
Nickel
Nickel
Nickel
Gold
Gold
Gold
Gold
Nickel
Gold
Gold
Handle
Nickel
Nickel
Black
Black
Nickel
Nickel
Black
Black
Nickel
Black
Nickel
Notes
0.175" handle opening
0.175" handle opening
0.175" handle opening
0.175" handle opening
Right angle
Right angle
Right angle
DIMENSIONS ARE FOR REFERENCE ONLY
www.switchcraft.com
Inch
(mm)
? Registered trademark of Switchcraft, Inc.
Note: Contact your Switchcraft Representative for price and delivery
